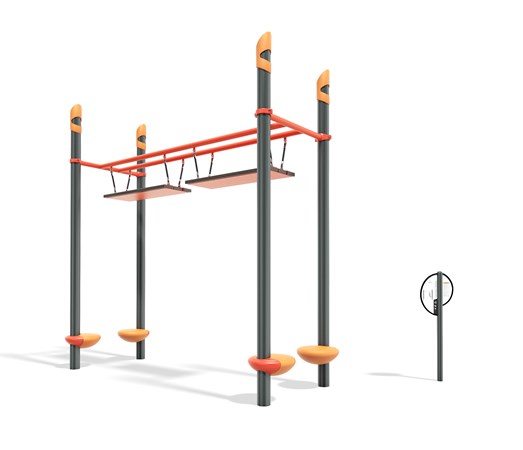

FitCore™ Extreme Unstable Bridge (13+)
Model #244063

Ages13+ Years

Component Overview

The Unstable Bridge requires users to hold onto both sides of the plank while crossing to maintain stability, and then use momentum to reach the second plank and complete the challenge. E-Pod® steps at each end allow teens and adults of all sizes to reach the bridge sections. This station can be used independently or combined with other FitCore™ Extreme equipment in a challenge course.

• Share
• Print
• PDF Download

Product Details

Features

• Each bridge section is 48" long and 17-1/2" wide, separated by a 14" gap
• Bridge is suspended by black steel-reinforced polyester-wrapped cables which are extremely durable and vandal resistant
• Includes illustrated instructional sign
• ProShield®-finished posts, clamps and components
• Polyethylene post toppers and E-Pods
• Steel posts
• Direct bury or surface mount
• Ages 13 years and older for ASTM F3101 and height 1400 mm and taller for EN16630
• Safety surfacing corresponding to the fall height of the equipment required to comply with ASTM F1292

• Proprioception, Tactile, Vestibular+, Visual

• Agility, Cardiovascular, Coordination, Core Body Strength, Endurance, Eye-Hand Coordination, Flexibility, Motor Planning, Upper Body Strength

• Problem Solving, Strategic Thinking

• Cooperation, Social Skill Development

Dimensions

• Max Fall Height (ASTM): 91" (2.31 m)
• Max Fall Height (EN): 52" (1,31 m)
• ASTM Clearance Space: 13' 7" x 24' 5" (4,14 m x 7,44 m)
• EN Clearance Space: 14' 3" x 21' 9" (4,34 m x 6,63 m)

Design/CAD Files

• Download 3D (PDF)
• Download 2D (PDF)
• Download 2D (DWG)

All About Color

Color is an important decision, and our products are available in many color options. Contact your consultant to find the colors available for this component.
